GLD-80

GLD is a user-friendly, cost effective and scalable live digital mixing system, conceptually based on the hugely successful digital iLive series. Plug n’ play I/O expanders make it easy to build systems with up to 48 mic inputs, supported by a full suite of apps, software and personal monitoring solutions.

At the heart of the system is the GLD-80 mixer, providing 48 input processing channels, 8 stereo FX returns fed by our acclaimed FX emulations, 30 configurable buses, 20 mix processing channels, and DSP power to provide full processing without compromise. Now available in a new GLD Chrome Edition, with sleek new styling, Automatic Mic Mixing, new embedded plugin FX and new compressor models on all channels.

FEATURE SUMMARY

Compact digital mixer with scalable, remote I/O
Systems from 4 to 48 mics
Easy to use, quick to access, analogue style interface
dSNAKE Cat5 digital snake—up to 120m cable length
8.4 inch colour touchscreen for graphical view and setup
20 faders, 4 layers, 80 channel strips in a freely customizable layout
48 input channels into 30 assignable buses (Aux, Group, Matrix, Main, FX Send) into 20 mix outputs
8 stereo RackFX engines with dedicated ‘short’ returns with 4-band PEQ
Full processing on all inputs including trim, polarity, HPF, insert, gate, 4-band PEQ, compressor and delay
Full processing on all outputs including insert, PEQ, GEQ, compressor and delay
Deep processing embedded plugins including GEQ and compressor models
Automatic Mic Mixer with up to 44 microphone sources
LR, None (monitors), LR+M (sum), LR+M (bus), LCR main mix modes
USB stereo recording and playback
16 DCAs / mute groups
Built-in Talkback, RTA and Signal Generator
I/O module options for FOH/Monitor split, multitrack recording, link to iLive and more
MIDI In/Out and Ethernet Network port
Compatible with ME Personal Mixing System
High end 1dB step recallable mic/line preamps
User definable channel names and colours
Engineer’s mono Wedge and stereo IEM strips
Input, output and insert soft patchbays
Quick copy, paste and reset of mixes and parameters
Libraries, Scenes and Show memories with USB transfer
Scene Filters, crossfades and automated recalls
Get started quickly with Template Shows
Password protectable user profiles

GLD-80 connects to a range of plug ‘n play I/O racks to build systems with up to 48 microphone inputs. A primary AR2412 or AB168 dSNAKE device, a secondary (daisy-chained) AB168 or AR84, and a further AR84 expander rack can all be connected over 120m CAT5 runs using A&H’s dSNAKE protocol. dSNAKE provides control to the remote preamp, and automatic firmware updates to the AudioRacks. All dSNAKE ports are also compatible with the ME Personal Mixing System.

AR 84

8 XLR Input / 4 XLR Output – 48kHz

AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR84 to your system lets you position some of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

FEATURE SUMMARY

8 Mic Preamps on XLR
4 XLR Line Outs
dSNAKE Connection with locking Ethercon port
Rack mountable

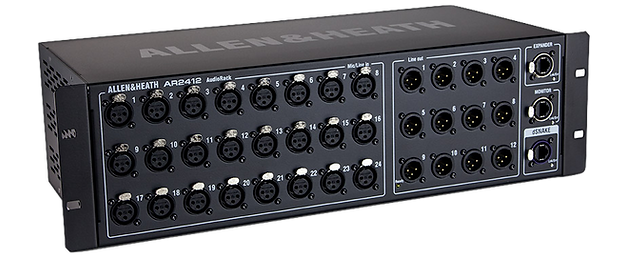

AR 2412

24 XLR Input / 12 XLR Output – 48kHz

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.

FEATURE SUMMARY

24 Mic Preamps on XLR
12 XLR Line Outs
dSNAKE Connection with locking Ethercon port
Expander Ethercon port for connection to an AR84 or AB168
Dedicated port for ME personal mixing system
Rack mountable

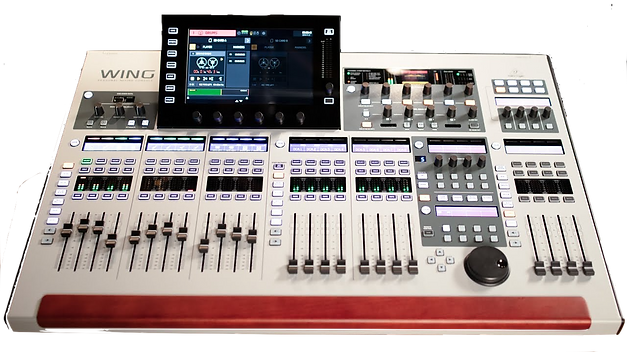

behringer Wing

48-Channel, 28-Bus Full Stereo Digital Mixing Console with 24-Fader Control Surface and 10" Touch Screen

The WING control surface utilizes a large capacitive touchscreen interface with touch-sensitive rotary controls for a new ease of operation. Three separate fader sections and a Custom Controls section can be tailored easily and intuitively to meet your personal requirements. No matter if you need a specific bus send fader next to the corresponding channel fader, or a dedicated “money” channel always at your fingertip, or even sharing the surface with two engineers - WING can be configured to elevate your production to a new level. You can even replace and customize the massive wooden armrest with something funkier if you like. The technical drawing can be found in the Downloads section of the product page.

FEATURE SUMMARY

Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)
Dynamic range, analog in to analog out (typical), XLR / aux
A/D dynamic range, preamplifier and converter (typical), XLR / aux
D/A dynamic range, converter and output (typical), XLR / aux
Crosstalk rejection @ 1 kHz, adjacent channels
Output level, XLR connectors (nominal / maximum)
Output impedance, XLR connectors (unbalanced / balanced)
Input impedance , TRS connectors (unbalanced / balanced)
Non-clip maximum input level, TRS connectors
Aux output level, TRS (nominal / maximum)
Aux output impedance, TRS (unbalanced / balanced)
Phones output impedance / maximum output level
Residual noise level, XLR out 1-16 connectors, unity gain
Residual noise level, aux and monitor TRS out connectors

Main screen
Main screen swivel, continuous adjustment
4-channel group LCD screen with RGB color strip per channel
Channel editing screen
Main stereo meter
100 mm motor faders
Touch-sensitive rotary controls
Custom controls
Fully assignable rotary controls
Fully assignable backlit buttons
Variable rotary controls / buttons
Switch-mode power supply
Power consumption
Standard operating temperatur range
Dimensions (HxWxD)
Weight

F10 Hz - 20 kHz

111 dB* / 108 dB*

112 dB* / 110 dB*

118 dB* / 112 dB*

100 dB

+4 dBu / +21 dBu

75 Ω / 75 Ω

20 kΩ / 40 kΩ

+16 dBu

+4 dBu / +16 dBu

150 Ω / 300 Ω

500 mW @ 75 Ω / +18 dBu

-97 dBu*

-95 dBu*

10.1" TFT LCD, 1280 x 800 px, capacitive touch

15°- 60°

320 x 48 monochrome

2.4" TFT LCD, 320 x 240 px

18 segment (-60 dB to clip)

12 + 8 + 4

3 + 7 + 11 + 4 + 4

8 + 8

4 / 4

Auto-ranging 100-240 VAC (50/60 Hz)

130 W

5°C – 40°C (41°F – 104°F)

201 x 870 x 575 mm (7.9 x 34.3 x 22.6")

24 kg (52.8 lbs

Midas DL32

32-input / 16-output Stage Box

The Midas DL32 stage box represents a serious upgrade of your mixing console and in-ear monitoring rig with the sound of Midas Pro preamps. This 32-in/16-out AES50-networkable device makes adding a digital snake to your rig as easy as running a single Cat 5 cable, and you can daisy chain up to two DL32s together, so you can comfortably set 64 remote-controllable Midas Pro preamps onstage with plenty of returns to spare for monitor mixing. Speaking of monitor mixing, the DL32 is Ultraconnect capable, so you can easily integrate it into your Behringer Powerplay P16 personal monitoring system.

FEATURE SUMMARY

Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles
32 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage
16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible
Up to 328' of networking capability via a single lightweight Cat 5e cable (not included)
Dual AES50 ports let you cascade up to 2 DL32 units together for an up to 64-in/32-out system
Precise LED metering plus 7-segment displays let you keep a close eye on your levels
Headphones output assignable to any of the inputs/outputs for on-stage monitoring
Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications
Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
MIDI In/Out provide bidirectional communication between FOH console and on-stage MIDI devices
Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting

Type : Digital Stage Box
Compatibility : AES50/Ultranet systems
Channels : 32 x 16
Inputs - Mic Preamps : 32 x XLR
Phantom Power : Yes
Outputs - Main : 16 x XLR (line)
Inputs - Digital : 2 x EtherCon (AES50)
Outputs - Digital : 2 x EtherCon (AES50), 2 x XLR (AES/EBU), 2 x Optical Toslink (ADAT)
Data I/O : 1 x Ethernet (Ultranet monitoring)
USB : 1 x Type B
Computer Connectivity : USB, Ethernet
MIDI I/O : In/Out
Rackmountable : 3U
Depth : 9.5"
Width : 19"
Weight : 12.5 lbs.
Manufacturer Part Number : 000-BMD02-00010

YAMAHA LS9

The LS9 is a full-digital mixing console designed for installed systems or SR applications, and in spite of its compact size, provides functionality and a channel count comparable to large-format consoles. 24-bit linear AD/DA converters are used to deliver up to 108 dB of dynamic range and amazing sound quality. As input channels, it provides 32 (LS9-16 model) or 64 (LS9-32 model) monaural INPUT channels, and four stereo ST IN channels. As output channels, it provides 16 MIX channels, eight MATRIX channels, a STEREO channel, and a MONO channel. L/C/R three-channel output using the STEREO/ MONO channels is also supported.

FEATURE SUMMARY

Product Dimensions‎ : 88.39 x 49.78 x 21.84 cm; 19.4 Kilograms

Item model number‎ : LS9-32

Power Source‎ : Corded Electric

Item Weight‎ : 19 kg 400 g

Manufacturer‎ : Yamaha

ASIN : B00D8OWTDG

Date First Available : 13 August 2014

Manufacturer : Yamaha

Item Dimensions LxWxH : 88.4 x 49.8 x 21.8 Centimeters

Generic Name : Mixers

32 top-performance recallable head amplifiers deliver microphone and line sources with extraordinary presence and realism.
An additional 32 channels of processing power ready to receive audio via the Mini-YGDAI expansion slot, providing a total of 64 channels!
4 stereo input channels.
An extensive range of channel functions accessible via Yamaha's acclaimed Selected Channel interface.
Versatile bus architecture with comprehensive digital patching capability: 16 mix buses, 8 matrix buses, and a stereo and mono bus that can be used in LCR mode.
Virtual GEQ and effect rack offers easy access to built-in graphic equalization and effects that would fill a full-size rack or two if similar analog gear were used.
Built-in USB Memory Recorder/Player eliminates the need for an external device for simple off-board recording, and can supply background music and sound effects as required.
Full-console scene Store and Recall.
Ready to use out of the box with pre-patched effects and pre-fader aux mixes for monitor sends.
Two Mini-YGDAI slots for easy system expansion.
Compact size: measures 884mm x 220mm x 500mm and weighs only 19.4 kg.

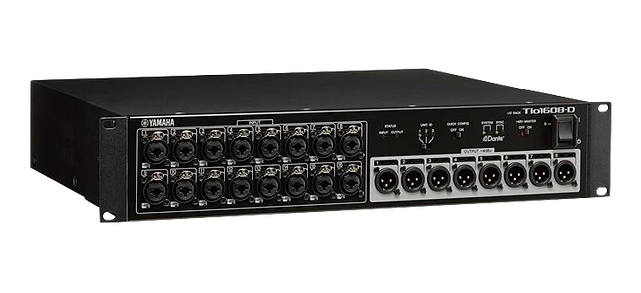

Yamaha Tio1608

The Yamaha Tio1608-D stage box provides 16 inputs and eight outputs for your TF series console, putting your I/O onstage where it's most convenient. Connect to your console with any standard Cat 5e LAN cable for high-quality, low-latency audio transfer. For more I/O, you can connect up to three Tio1608-D boxes onstage for 48 inputs and 24 outputs. And live sound engineers at Sweetwater love the ability to control the Tio1608-D preamplifiers directly from a TF series console. For a high-performance stage box solution, check out the Yamaha Tio1608-D.

Digital stage box for Yamaha TF series consoles
16 high-quality mic preamps are controllable from your console
Connect up to 3 simultaneously for 48 inputs and 24 outputs
TF mixers require a NY64-D Dante interface card to connect to this stage box (sold separately)
Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)

Type : Digital Stage Box
Compatibility : Yamaha TF Mixers with Dante Cards
Channels : 16 x 8
Inputs - Mic Preamps : 16 x XLR-1/4" combo (mic/line)
Outputs - Main : 8 x XLR (line +4dBu)
Data I/O : 2 x EtherCon (primary, secondary)
Computer Connectivity : Ethernet (Dante)
Rackmountable : Yes
Power Source : Standard IEC AC cable
Height : 3.5"
Depth : 14.37"
Width : 18.87"
Weight : 12.6 lbs.
Manufacturer Part Number : Tio1608-D
