Microphones & IEM

Condenser mic – A microphone commonly found in studios with a large frequency range and high sensitivity. Known for being very accurate.

Dynamic mic – A microphone found in both studio and live settings with a limited frequency range and lower sensitivity. Known for handling more aggressive or loud instruments.

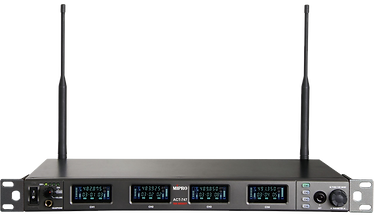

Wireless Microphon - ACT-747

• EIA standard 1U rack-mountable metal receiver.
• Advanced true diversity technology for best reception quality.
• 104 selectable frequencies and 16 preset compatible channels per band. More with multiple bands.
• Industry’s only full-color VFD screen delivers a bright, clear viewing in day/night environments.
• Displays Group, Channel, Frequency, Performer’s Name, transmitter battery level, RF, Audio, SQ level meters, diversity operation, RF interference warning indicator and Lock status.
• One-touch Autoscan for a clear, interference-free frequency.
• One-touch ACT™ syncs the transmitter and receiver frequency automatically.
• Dual "PiloTone & NoiseLock" circuits minimize interference.
• MIPRO RCS.Net software allows real-time computer set up, control and monitoring.
• Industry’s only RF interference warning indicator and control for management.
• Displays all pertinent parameters on the same screen for easy control and monitoring.
• All controls are intuitive and easily setup via a single rotary knob.
• RF, audio and transmitter battery status meters.
• Superb RF reliability and transparent audio performance.
• Receiver provides bias voltage for MIPRO antenna systems.
• 100m(330ft.) operating range.
• 100% made in Taiwan ensures high product quality and value.

Wireless Microphon - ACT-74

• The ACT-74 receiver is EIA standard 1U rack-mountable, with metal chassis for excellent heat dissipation & RF shielding.
• UHF PLL synthesized circuit and advanced RF and IF circuitry to improve anti-interference characteristics and increase the number of interference-free channels available.
• 400 preset channels with 1-set of user-defined group that saves up to 16 channels.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• True diversity receiving for best reception quality. Dual "PiloTone & NoiseLock" circuits minimize interference.
• Industry’s only full-color VFD screen delivers a bright, clear viewing in day or night environments with automatic bright (working) and dim (standby) displays during performance.
• All controls are intuitive and easily set up via a single rotary knob.
• Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend the receiving range; decrease the sensitivity to reduce interference.
• Single channel or mixed output, switchable between three output levels for the best sound quality options.
• High dynamic range and high fidelity characteristics for transparent audio performance.
• Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
• MIPRO RCS.Net software allows real-time computer setup, control and monitoring.
• Built-in 100~240V AC switching power supply ensures system safety and stability.

Sennheiser E901 Kick In / E902 Kick Out Combo

Particularly useful for the live sound engineer wanting a good sound from the source and options to blend the desired amount of punch and low end.

Specifications

Transducer Type Condenser (e901) Dynamic (e902)

Frequency Response. 20 Hz - 20 Khz. 20 Hz - 18 Khz

Polar Pattern Half Cardiod Cardiod

Sennheiser E903

High-quality dynamic microphone with cardioid pick-up pattern, especially suitable for use with percussion in-struments and drums.

Specifications

Wandlerprinzip

Akustische Arbeitsweise

Übertragungsbereich

Richtcharakteristik

Magnetfeldstörfaktor (bei 50 Hz)

Nennimpedanz (bei 1 kHz)

Min. Abschlussimpedanz

Stecker

Gewicht

Maße

dynamisch

Druckgradientenempfänger

40-18.000 Hz

Niere

≤1µV/µT

350 Ω

1 kΩ

3-polig XLR-3-Stecker

325 g

∅ 40,75 mm, Länge 176 mm

Sennheiser EW500

The Sennheiser EW 500 G4-MKE2 is an easy-to-use rackmount wireless lavalier microphone system with professional-level features for enhanced reliability and control. It offers variable RF power, an exceptionally wide tuning range, Ethernet networking for multi-channel setups, and an intuitive interface with an OLED display

Specifications

With SKM 500 G4 handheld transmitter, dynamic E935 replaceable capsule and EM 300-500 G4 9.5" receiver
Frequency range: CW Band (718 - 790 MHz)
Polar pattern: Cardioid
72 MHz switching bandwidth
20 Channel banks each with up to 32 presets
Up to 32 compatible channels
Fast frequency allocation for up to 12 receivers via link function with RJ10 connection
Frequency response: 25 - 18.000 Hz
Frequency transmission via infrared interface
Handheld transmitter with charging contacts for optional rechargeable battery BA 2015 (NiMH)
Pilot tone

Autotune for finding free frequencies
Integrated EQ
Audio Gain includes 60 dB
Soundcheck Mode
4-Digit battery indicator on the transmitter and receiver
HDX compander
LCD display with NF level and channel display
Switchable transmission power 10/30 / 50mW
2 BNC antenna sockets
XLR-Male balanced and unbalanced jack
Power supply 10.5 - 16 V DC
Suitable capsules: Sennheiser EW, Neumann and MD 9235 (not included)
Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries

SHURE AXT 200 / BETA 58A

In addition to Frequency Diversity, the AXT200 delivers ultra-linear RF performance for more channels on air, superb audio quality. Its advanced rechargeable power management supports extended battery life and highly accurate status metering. ShowLink™ Remote Control enables comprehensive real-time remote control of all transmitter parameters, including real-time frequency adjustments.

Specifications

Frequency Diversity
- Enables simultaneous transmission on two independent frequencies to ensure seamless, uninterrupted audio for mission-critical transmitters in extreme RF settings.
- Single-frequency transmission can also be enabled, to conserve spectrum.
Ultra-linear RF performance maximizes available channel capacity in challenging RF environments.
IR Sync establishes connection of transmitter to receiver with one touch over infrared.
Switchable 10/50mW RF power levels to extend run times or increase signal strength.
Up to 80 MHZ tuning range matched to UHF-R transmitter ranges.
Advanced lithium-ion batteries provide reliable, rechargeable power with up to 10 hours of run time.
Real-time metering reports remaining battery power in hours and minutes on transmitters, receivers and WWB6 to within 15-minutes’ accuracy.
Zero memory effect through lithium-ion chemistry eliminates the memory effect problems inherent in previous generations of rechargeable batteries.
Rapid charging brings batteries to 50% capacity within 1 hour.
Integrated battery design seamlessly and securely locks the rechargeable battery into transmitter body.

SHURE SM57

A snare crack. An arpeggiated chord. A powerful saxophone solo. Whether on stage or in the studio, the notes that flow from your instrument connects your audience on a visceral level. And such sounds need a mic that can handle its strength. For every acoustic condition, the SM57 delivers the power of your playing to every fan in the house.

Specifications

Contoured frequency response for clean, instrumental reproduction and rich vocal pickup
Professional-quality reproduction for drum, percussion, and instrument amplifier miking
Uniform cardioid pickup pattern isolates the main sound source while reducing background noise
Pneumatic shock-mount system cuts down handling noise
Extremely durable under the heaviest use
Frequency response: 40 to 15,000 Hz

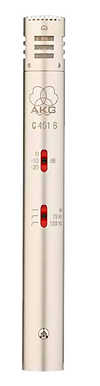

AKG C451B

The C451 B is a small-diaphragm condenser microphone with the identical acoustical behavior of its predecessor, the legendary C451 EB + CK1 capsule, which was a bestseller right from the start in 1969.

Specifications

Audio frequency bandwidth

Equivalent noise level

Sensitivity

Signal to Noise

Preattenuation Pad

Bass cut filter

Electrical impedance

Recommended load impedance

Polar Pattern

Voltage

20 - 20000 Hz

18 dB-A

9 mV/Pa

76 dB-A

-10; -20 dB

75; 150 Hz

200 Ohms

1000 Ohms

Cardioid

9 to 52 V

Current

Height

Diameter

Net Weight
Finish

Type

Gender

Contacts

Pro Studio

Piano / Strings

Horns / Woodwinds

Drums / Percussion

2 mA

160 mm

19 mm

125 g

satin nickel plated

Balanced XLR

Male

3-pin

Yes

EW 300 G4-ME2-RC

The Sennheiser EW 300 G4-ME2-RC is an easy-to-use rackmount wireless lavalier microphone system geared for business and educational applications. It offers professional-level features for enhanced reliability and control, including variable RF power, an exceptionally wide tuning range, Ethernet networking for multichannel

Specifications

For Presenters and Educators
ME 2-II Omnidirectional Lav Mic
Remote-Ready Bodypack Transmitter
True-Diversity Rackmount Receiver
3250 Auto-Scan Frequencies
Selectable 10/30/50mW RF Power
High-Contrast OLED Display
Ethernet for Control Cockpit Software
8-Hr AA Batteries
Expandable to 32 Mic Channels/330' Range
