Lighting System

Consol - AVO 2010

  • Dimension W X D X : H670 x 480 x 140mm

  • Weight : 13 Kg

  • Height : 14cm

  • Playback Submasters : 10

  • channels : 2048 to 240 moving lights on 4 isolated DMX outputs

  • Frequency : 50-60 Hz

  • Internal Flash Drive, similar in functionality to a hard disk but faster and more rugged. Provides enough storage for the entire Fixture Library of more than 3,000 files or over a hundred show files.

  • Removable external Memory Stick.

  • Fixture Selects (selecting the top row of faders)

  • 2048 Channels across 4 DMX universes.

  • 240 Intelligent Fixtures.

  • 240 Dimmer Control Channels.

  • Theatrical Plotting and Playback functions.

  • Shape Generator for instant creation of patterns and effects.

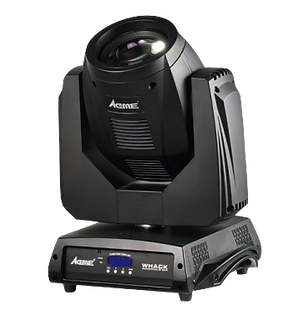

ACME XP 5R Beam

Specifications:

  • Light Source: Philips MSD Platinum 5R

  • Beam angle: 1° ~ 3.8°

  • Color temperature：8000K

Control:

  • DMX channel：15/16/19/20 Channel

  • Control Modes：DMX, Master/Slave

  • Software upgrade：Firmware update via DMX link

PAN & TIL:

Pan movement: 540°
Tilt movement: 250°

Static Gobos:
1 x static gobos with 17 gobos plus open

Color Wheel:
1 x color wheel with 14 colors plus white

Electrical and Connectors:
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 290 W
Power Connector input/output
Data in/out: 3-pin XLR

XP5R Beam.png

LED PAR (3200K-6500K)

Color Temperature(CCT) : 2700K (Soft Warm White)/5400K

Support Dimmer : Yes

Lifespan (hours) : 10000

Input Voltage(V) : AC100-240V, 50-60Hz

IP Rating : IP20

Emitting Color : Warm White/Cold White

Light Source : LED

Size : 270*270*300mm

Weight : 6KG


Spectator Light

  • High-Power WW or CW LED COB Lamps: 4 x 100W (400w)

  • Optics: 80 degree Wide Flood

  • DMX operation – with just 1 DMX channels

  • Wireless DMX ready – using special 3-Pin XLR socket with 5vdc

  • Powercon IN & OUT for mains (supplied with 1x Mains & 1x Link cable)

  • Power: 90 – 260VAC – 50/60 Hz, 450 watts

  • Power450w

  • Input Voltage100 to 260VAC 50/60 Hz

截圖 2023-04-27 下午10.08.35.png

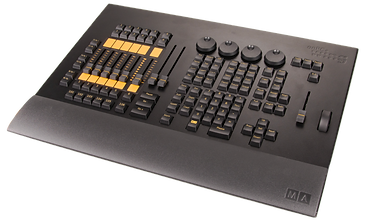

Console - MA on PC

  • Real-time control for 2,048 parameters in combination with grandMA2 onPC (up to 65,536 parameters as backup in the MA system)

  • Expandable up to 4,096 parameter

  • Command section similar to grandMA2 layout

  • 2 A/B faders (100mm)

  • 1 Level-Wheel

  • Individually backlit and dimmable silent (clickless) keys

  • Integrated universal power supply (90-240V, 50-60Hz)

  • Light (just 6kg), handy & rock solid

  • Ergonomic design

  • Just connect via USB to any PC running grandMA2 onPC

  • Wherever it is physically difficult to use a grandMA2 console, the MA onPC command wing, in conjunction with the grandMA2 onPC software, enables the customer to program or playback within the grandMA2 world. Therefore the MA onPC command wing is ideal to be used as a backup solution within the grandMA2 system, as powerful control solution on the road or for smaller theatres, shows and clubs or for preprogramming.

  • It is also possible to add more faders by connecting the MA onPC fader wing to the MA onPC command wing. Moreover the MA onPC fader wing provides additional 2,048 parameters and four DMX lines. The MA 8Port Node onPC and MA 4Port Node onPC will add 2,048 parameters and eight or four DMX lines respectively.

  • Please regard that it is possible to connect one MA onPC command wing and up to two MA onPC fader wing together to a computer running grandMA2 onPC.

截圖 2023-04-27 下午10.21.45.png

Moving Head Wash (RGBW)

voltage :100–240 V, 50/60 Hz

Lamp : 7pcs 40W Osram 4in1 LEDs

Power consumption : 350W

Beam angle : 5-50 degree

Dimmer : 0-100% dimmingStrobe: 0~20HZ

Control mode : Standard DMX512, Automatic and Master/ slave mode

Display : LCD display

Housing : Flame-retardant plastic

DMX channel : 12/17CH

IP rate : IP20

Data in/out:3-pin XLR in out

Power in/out: powerCon in out

N.W.:7.5kgs


LED PAR (RGBW)

Power supply : AC 90V~250V 50~60Hz

Power consumption : 105W

LED : 18

Control : Light´J; LED PC-Control 512; Light Captain

Color : Black

Weight : 7 kg

DMX channels : 3/4/5/9

DMX connection : 3-pin XLR

Sound-control : via built-in microphone

LED type : 3 W TCL

LED number : 18

Beam angle : 25º/38º

LED PAR.png

LED BAR (RGBW)

  • Size: 20.5” x 1.5” x 2.0”

  • Flood/Spot Light Pattern

  • 8,800 Lumens

  • 105 Total Watts

  • Shatterproof UV Resistant Lens

  • OSRAM LEDs Rated at 50,000 Hours of Use

  • Bezel-less Housing with Heat Fins

  • IP68 Rated - Resistant to Water and Dust

LED BAR.png
